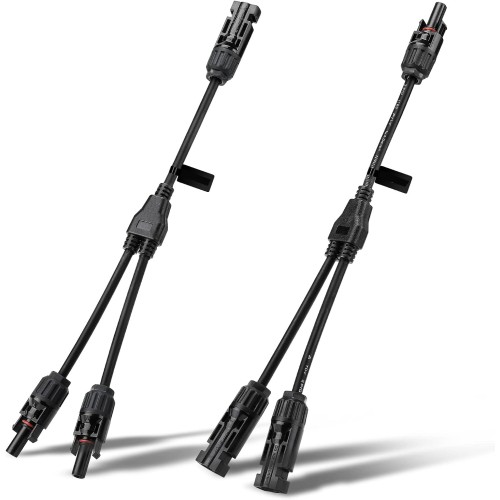

Solar Connectors Y Branch Parallel Adapter Cable for Solar Panel
Price:
$16.00
Brand:
StarlinkPanama
Product Code:
SLP-14
Stock:
In Stock
Weight:
0.26lb
Dimensions:
13.00in x 3.00in x 1.00in
Solar Y Branch Connectors are used for parallel wiring solar panels (PV modules). Sold as a pair, these “Y-Connectors” will maintain the voltage of the solar panel configuration to match the battery size.
These connectors are solely compatible with Solar connectors and come with one male (MMF) and one female (FFM) connector.
Y Branch Parallel Connector: 1 male to 2 female (M/FF) and 1 female to 2 male (F/MM) solar connectors, which can connect 2 solar panels in parallel.
Main Technical Specification: Rated Current: 20A, Rated Voltage: DC1000V.
Wide Application: The solar y connector is compatible with various solar cables:14-10AWG (1.5mm² - 6mm²).
IP67 Waterproof: The waterproof ring in male connector is designed to prevent water and dust. With high-quality PPO material, solar connectors can resist to ultraviolet rays, and high temperature.
Plug and Play: You can assembly solar y connector quickly and simply. Just press the built-in-lock on the male connector to disconnect.
Specifications:
Connector Type: Y Branch Parallel Connector
Color: Black
Item dimensions LxWxH: 13 x 3 x 1 inches
Item Weight: .26 lb (.12 kg)
Rated Current: 20A
Rated Voltage: DC 1000V
Solar Cable Size: 10-14AWG
Waterproof Degree: IP67
Insulation Material: TPE PPO
Operating Temperature: -40℉ to 221℉
Safety Class: II
What's Included:
(1) Male to 2 Female (M/FF) solar connector
(1) Female to 2 Male (F/MM) solar connector
